Raymarine EV-200 Autopilot Systems


Race, Cruise or Fish – Raymarine EV-200 Autopilot Systems will take command.

The culmination of Raymarine’s' autopilot expertise and advanced aerospace guidance technology, Evolution Ai™ control algorithms deliver a new level of accurate autopilot control. At the centre of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing.

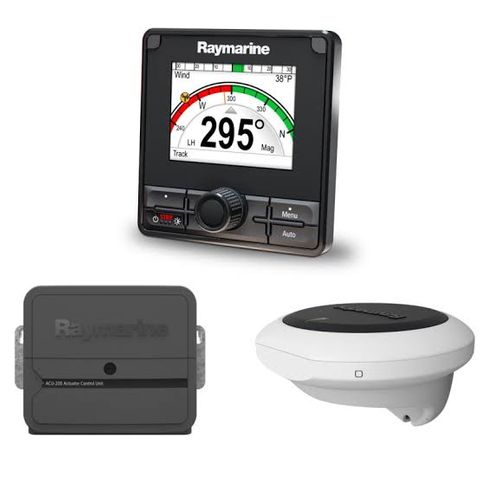

The EV-200 system consists of an EV-1 Sensor, ACU-200 Autopilot Control Unit, Drive Unit, Control Head, Rudder reference sensor and an Evolution autopilot cabling kit suitable for vessels with any Type 1 drive unit (Hydraulic, Linear, Mechanical Rotary).

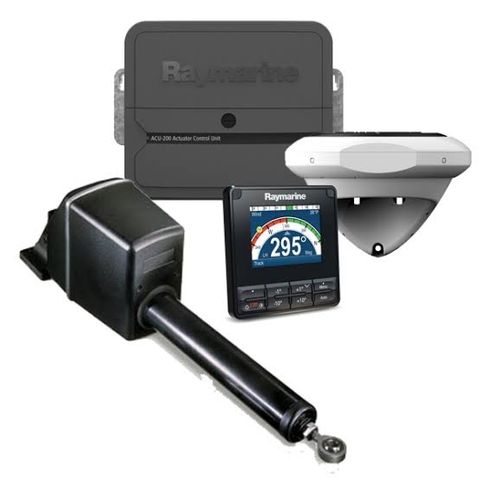

EV-200 Sail: Designed for mid-sized sailboats with mechanical steering, the option of mechanical linear or mechanical rotary drive types this system is suitable for vessels with a max displacement of 11,000 KG

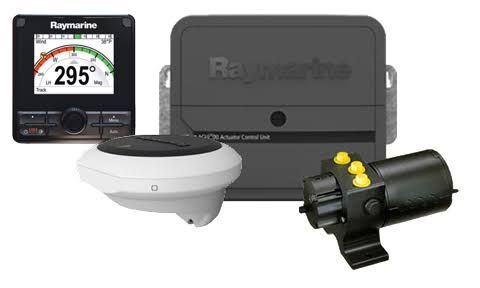

EV-200 Power: Perfect for both 12/24v DC vessels with hydraulic steering with a steering ram capacity between 4.9 cu. in.(80cc) and 14.0 cu in (230cc).

Key Features:

  • Automagic™ - No lengthy calibration procedures to perform. No compass calibration required. Plug and play connections
  • Easy to install - Freedom from the restrictions of conventional heading sensors. EV sensor core can be installed above or below deck. Install upside-down or off the vessel's centre line.
  • Aerospace technology - 9-axis precision monitoring of pitch, roll, yaw and heading
  • Fuel efficient - Evolution autopilots steer so accurately they will save fuel and get you to your destination faster
