Raymarine EV-150 Autopilot Systems
The culmination of Raymarine’s' autopilot expertise and advanced aerospace guidance technology, Evolution Ai™ control algorithms deliver a new level of accurate autopilot control. At the centre of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing.
The Evolution EV-150 Hydraulic Autopilot System Pack is a complete autopilot-in-a-box kit that is ready to install on many popular fishing and cruising powerboats with hydraulic steering. EV-150 system is engineered specifically to meet the needs of small to medium sized hydraulically steered vessels with a steering ram capacity between 4.9 cu. in.(80cc) and 14.0 cu in (230cc).

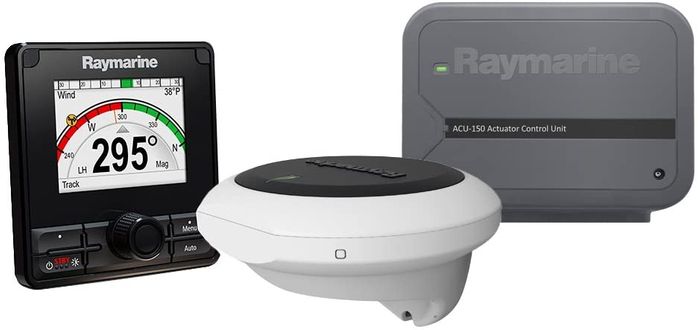

The EV-150 system is for 12-volt DC electrical systems only. The system comes complete with our p70Rs autopilot controller, EV1 Sensor Core, ACU150 Actuator Control Unit, Type 1 Hydraulic Pump, and an Evolution autopilot cabling kit.
Key Features:
- Automagic™ - No lengthy calibration procedures to perform. No compass calibration required. Plug and play connections
- Easy to install - Freedom from the restrictions of conventional heading sensors. EV sensor core can be installed above or below deck. Install upside-down or off the vessel's centre line.
- Aerospace technology - 9-axis precision monitoring of pitch, roll, yaw and heading
- Fuel efficient - Evolution autopilots steer so accurately they will save fuel and get you to your destination faster
Options Available :
- EV-150 - Power Pilot with P70RS, EV1 Sensor Core, ACU-150 & Type 1 Hydraulic Pump
- EV-150 - Power Pilot with P70RS, EV1 Sensor Core, ACU-150 & No Drive
- EV-150 - Power Pilot with P70RS, EV1 Sensor Core, ACU-150 & Type 1,Hydraulic Pump with S100 wireless remote control
