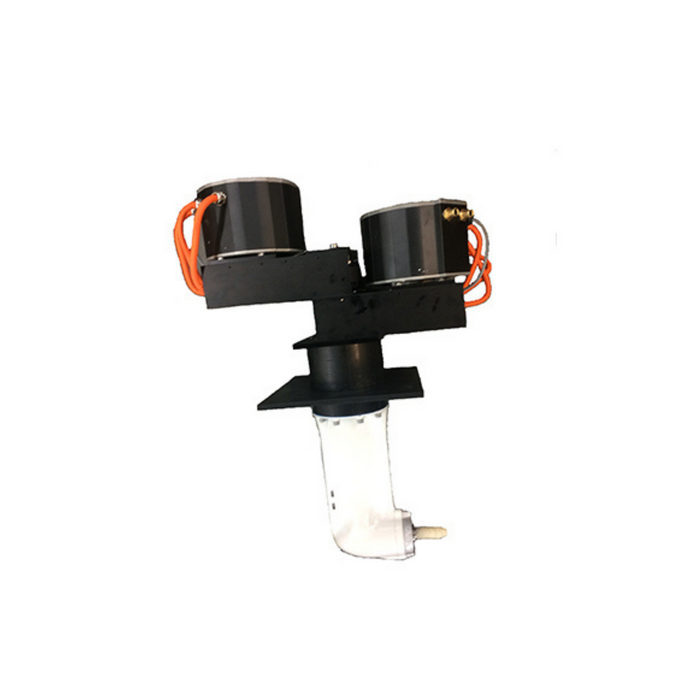

QuietTorque™ 45.0 LC Sail Drive - 72Volt
$36,169.18
Specifications
- Motor type 2 PMAC Brushless
- Voltage 72Vdc (nom)
- Max. Input Power 45 kW
- Cont. Input Power 37.5 kW
- Weight 220 lbs (100 kg)
- Frame Anodized Aluminum
*Permanent magnet Alternating Current
Standard Features
- Motor Mounts: Fits same 9” diameter mounting as diesel saildrives
- Throttle: Anodized Al waterproof throttle with key & neutral lock
-
System Monitor: Programmable digital display
- State of Charge (SOC)
- Voltage, Current, Power and RPM
- Time to Discharge (TTD)
- Programmable regeneration and max power
- Programmable RH or LH propeller rotation
- Programmable for flooded, AGM and LiFePO4 battery type and size
- Power Switch: Two position 500A GigaVac switch
- Relays: 500amp TE Connectivity vacuum relays
- Fuse: Class-T fuse & holder
