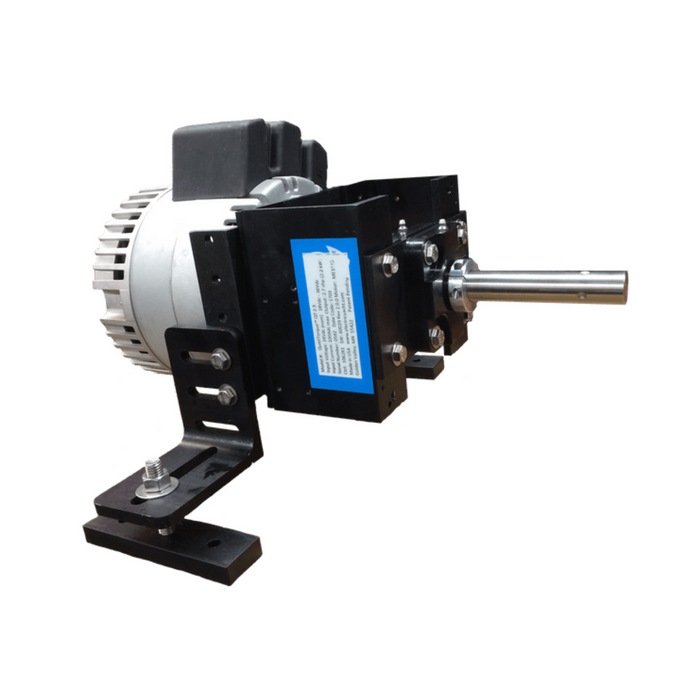

QuietTorque™ 5.0DD Electric Motor - 48Volt

$8,963.24

The QuietTorque 5.0DD can be configured for 24Vdc*, 36Vdc* or 48Vdc* electric propulsion, providing high sustained output, and is ideal for small day sailors. By using a PMAC (Permanent Magnet AC), Electric Yacht can produce this compact Plug-n-Play powerful, light weight, air cooled system.  Typical battery size is 100Ah at 24Vdc, 36Vdc or 48Vdc.  These systems can be installed by a competent boat owner using simple tools and the easy to mount Electric Yacht system.  To be prudent, we recommend that a certified marine electric technician review the completed system.  Typically programed and sized to push boat at cruising or harbor speed. Each system is engineered for your boat to maximize the speed and range of the boat.  The System is backed by Electric Yacht’s three-year warranty.

Specifications

Motor type: PMAC brushless motor
Voltage: 24Vdc – 48 Vdc
Current: 100 Adc
Max power input: 2.5 kW (24Vdc), 3.6kW (36Vdc) or 5.0 kW (48Vdc)
Shaft size: 3⁄4 to 1 1⁄2 inch and metric stainless steel
Weight: 40 pounds
Frame: Anodized Aluminum

QuietTorque 5.0DD Electric Motor Datasheet
