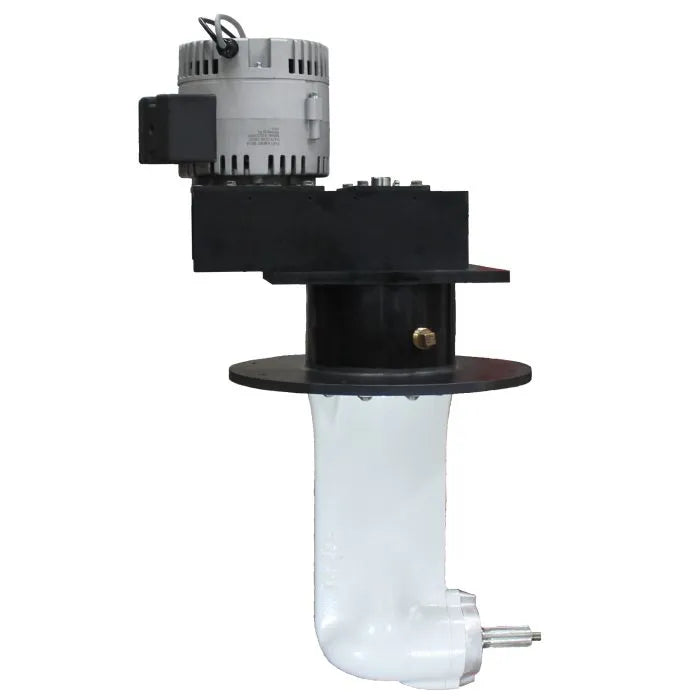

QuietTorque™ 10.0 Sail Drive - 48Volt
$18,522.06
Perfect for new build or repower. Installs in place of existing saildrive with little or no modification to the hull. Typical battery size is 200Ah to 300Ah at 48Vdc.
Specifications & Features
- Motor type: PMAC*brushless motor
- Voltage: 48 Vdc
- Current: 200 Adc
- Max power input: 10.0 kW
- Weight: 110 pounds
- Maintenance: No maintenance components
- Frame: Anodized Aluminum
- Propeller: 2 or 3 blade 12″ to 16″
- Fixed or folding
- Throttle Anodized Al waterproof throttle with key & neutral lock
- Digital Display
- State of Charge (SOC)
- Voltage, Current, Power and motor RPM
- Program battery type and size
- Time to Discharge based on current power consumption, updated in real time
- Programmable regeneration
- Stainless Steel shaft coupler
- Power Switch Blue Sea two position switch
- Relay 500amp vacuum relay
- Fuse Class-t fuse & holder
- *Permanent Magnet Alternating Current
