Raymarine i50 Instrument Displays


The i50 instruments are designed to complement Raymarine's latest generation multifunction displays. These stylish, dedicated-function instruments are the perfect solution for smaller power boats, yachts and RIBs. The i50 range consists of 3 digital displays: speed and depth displays with extra-large digits and a multi-line tridata unit. Excellent viewing angles for both day and night conditions and simple, push-button controls make i50 instruments extremely easy to see and use. Features large numerals and digits and red back lighting for enhanced night time visibility. Interfaces with SeaTalk and SeaTalkng. NMEA 2000 Compatible interface.  Built-in Transducer interface.  110mm x 115mm footprint. Low power consumption.  Multiple data source support eliminates potential data conflicts. Front mount design for simple installation.

Segmented monochrome LCD, Dimensions (W x H x D): 4 3/8” x 4 9/16” x 1 1/2", Data Interface:    SeaTalkng (NMEA 2000), Voltage:  12V (10-16V DC), Draw:  45-65mA Typ.; 200mA max., Waterproof Rating:  IPX6

Options Available :

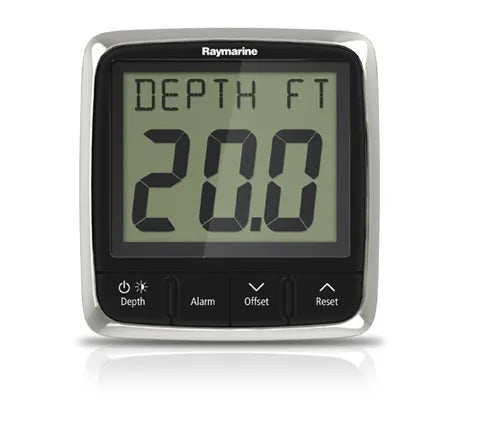

  • Depth: Min/max depth. Audible shallow, anchor and deep-water alarms. Trend indicator.

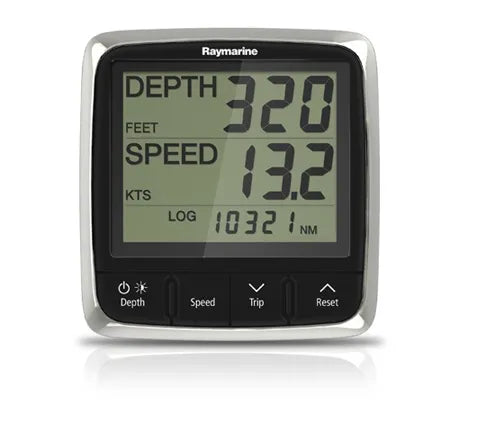

  • Tridata: Combined depth and speed data with trip/log, sea temp and SOG.

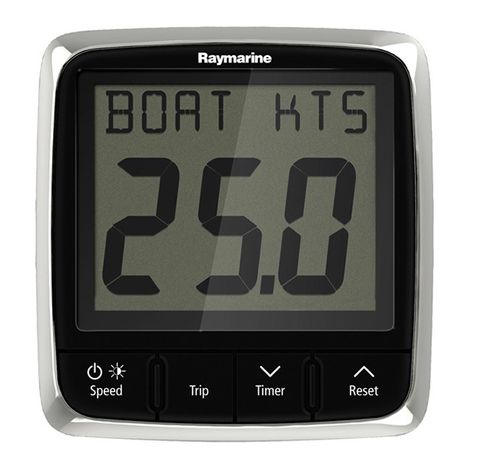

  • Speed: Speed through water or over ground (GPS required), sea surface temp, trip and log data
  • Tridata Speed/Depth/Temp Pack: with P120 and P319 Plastic Speed/Temp/Depth Thru Hull Transducers
