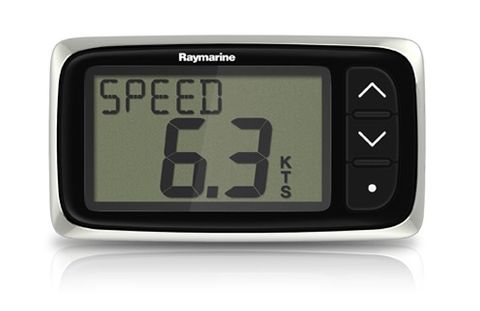

Raymarine i40 Instrument Displays


Big displays for smaller powerboats, sailboats and RIBs, these compact yet powerful SeaTalk instrument displays offer full integration with Raymarine autopilots and navigation equipment. With extra-large digits (1 1/8"H max) and razor sharp LCDs, easy-to-use i40 instrument displays have outstanding visibility in all lighting conditions. Red backlighting for improved night-time visibility. Low power consumption for increased battery life. SeaTalk interface (SeaTalkng when used with SeaTalk to SeaTalkng converter). Built-in transducer interface. Same footprint and installation as older Raymarine ST40 instruments.

Segmented monochrome LCD, Digit Size: 1 1/8"H (28mm), Dimensions (W x H x D): 5 1/16" x 2 7/8"  x 1 1/16", Data Interface:    SeaTalk, Voltage:  12V (10-16V DC), Draw:  25-35mA, Typ.; 100mA max. Waterproof Rating:  IPX6

Options Available:

  • Speed: Current, maximum and average boat speed, log trip and sea temperature
  • Depth: Shallow and deep anchor alarms, minimum depth display
  • Wind: Apparent wind speed and direction, true wind speed and direction.
  • Bi-data: Speed, depth, log and sea temperature, multiple alarms
