BYD BATTERY-BOX HV PREMIUM HV BATTERY & MANAGE UNIT with BASE for HVS/HVM (BMU & Base are sold as a set but separately)

BYD BATTERY-BOX HV PREMIUM HV BATTERY & MANAGE UNIT with BASE for HVS/HVM (BMU & Base are sold as a set but separately)

$2,350.69

The BMU and Base are sold as a set, while the battery is not included and needs to be purchased separately.

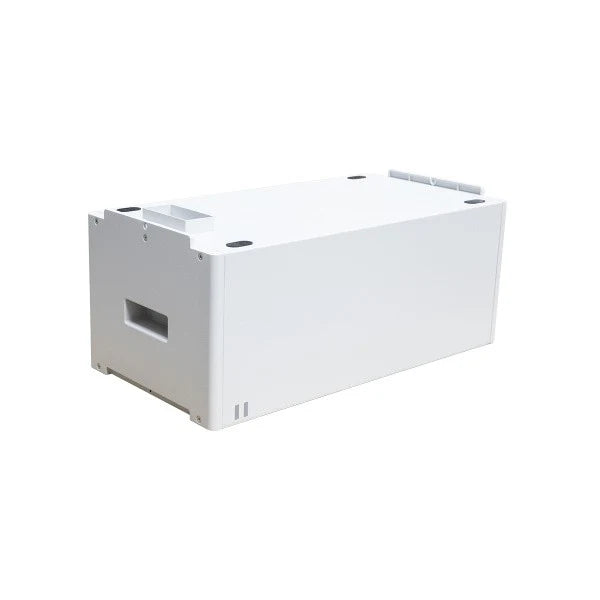

HV battery module is used in the BYD Battery-Box Premium HVM modular energy storage system. This system uses Cobalt Free Lithium Phosphate (LFP) cells, that guarantee maximum safety, life cycle, and power.

BATTERY-BOX PREMIUM HVS - Please Call us for Availability

One Battery-Box Premium HVS is composed of 2 to 5 HVS battery modules that are connected in series to achieve a usable capacity of 5.1 to 12.8 kWh. Additionally, direct parallel connection of up to 3 identical Battery-Box Premium HVS allows a maximum capacity of 38.4kWh. Ability to scale by adding HVS modules or parallel HVS stacks later.

BATTERY-BOX PREMIUM HVM – Please Call us for Availability

One Battery-Box Premium HVM is composed of 3 to 8 HVM battery modules that are connected in series to achieve a usable capacity of 8.3 to 22.1 kWh. Additionally, direct parallel connection of up to 3 identical Battery-Box Premium HVM allows a maximum capacity of 66.2 kWh. Ability to scale by adding HVM modules or parallel HVM stacks later.

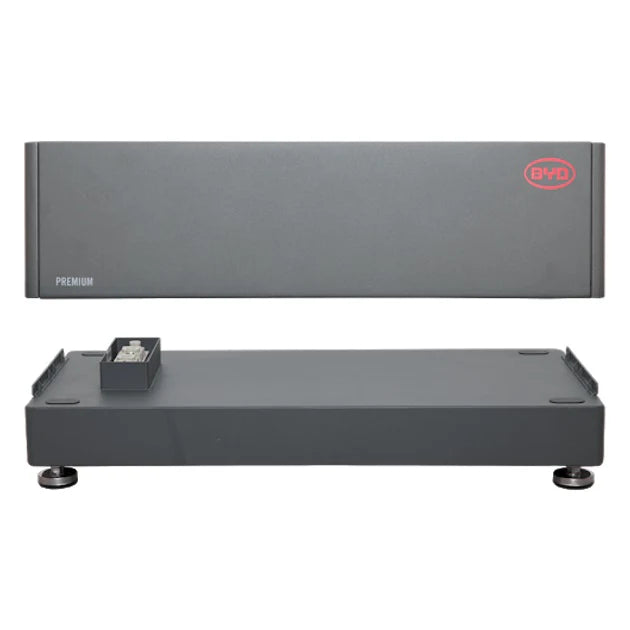

You will need to purchase the BYD Premium HV Battery Manage Unit & Base HVS HVM when purchasing the HVS and HVM Model (which is available as a separate purchase from the Battery)

For use with BYD HVS and HVM battery systems. Capable of high-powered emergency-backup and off-grid functionality and the highest efficiency due to a real High-Voltage Series Connection. The patented modular plug design means no internal wiring and allows for maximum flexibility.

• Supports high-powered emergency backup and off-grid use

• Maximises efficiency with genuine high-voltage series connection

• Patented plug-in modular design eliminates internal wiring for flexible, easy use

• Cobalt-free lithium iron phosphate (LFP) battery ensures safety, longevity, and power

• Works with top 1- and 3-phase high-voltage battery inverters

• Two modules cover all system sizes

• Meets top safety standards, including VDE 2510-50



Battery-Box HVS/HVM Premium Datasheet
